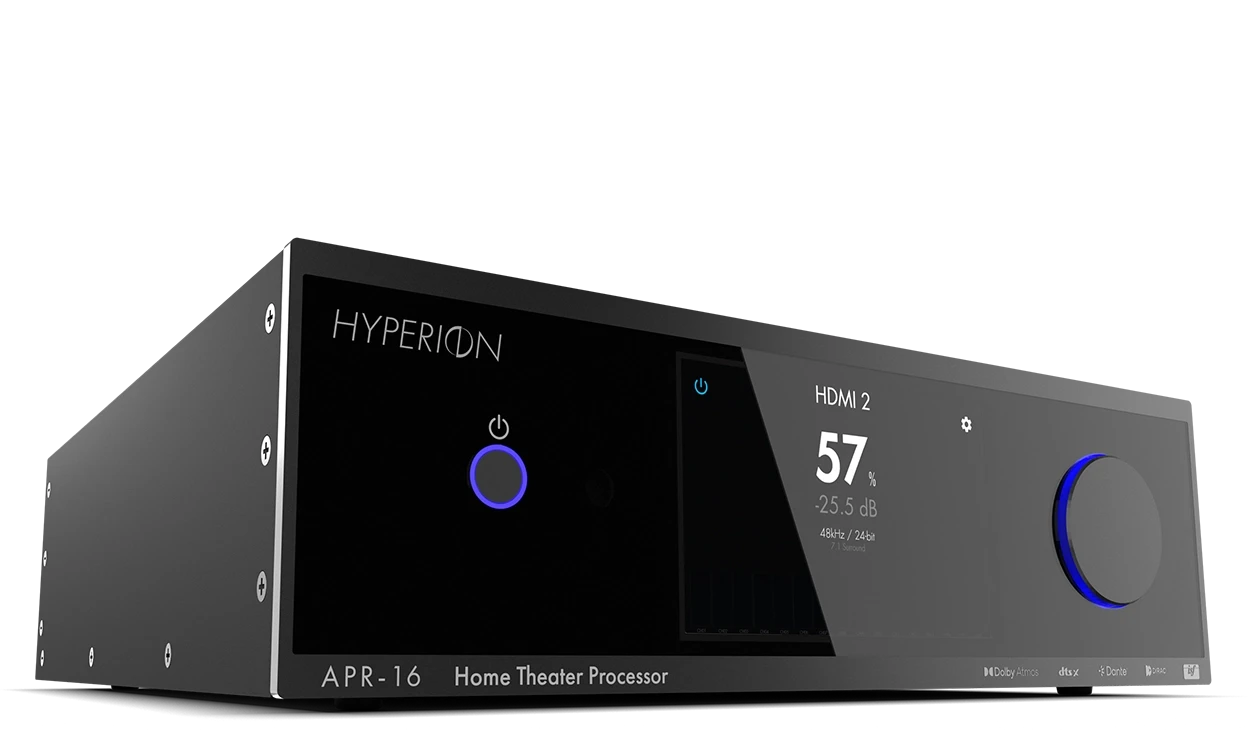

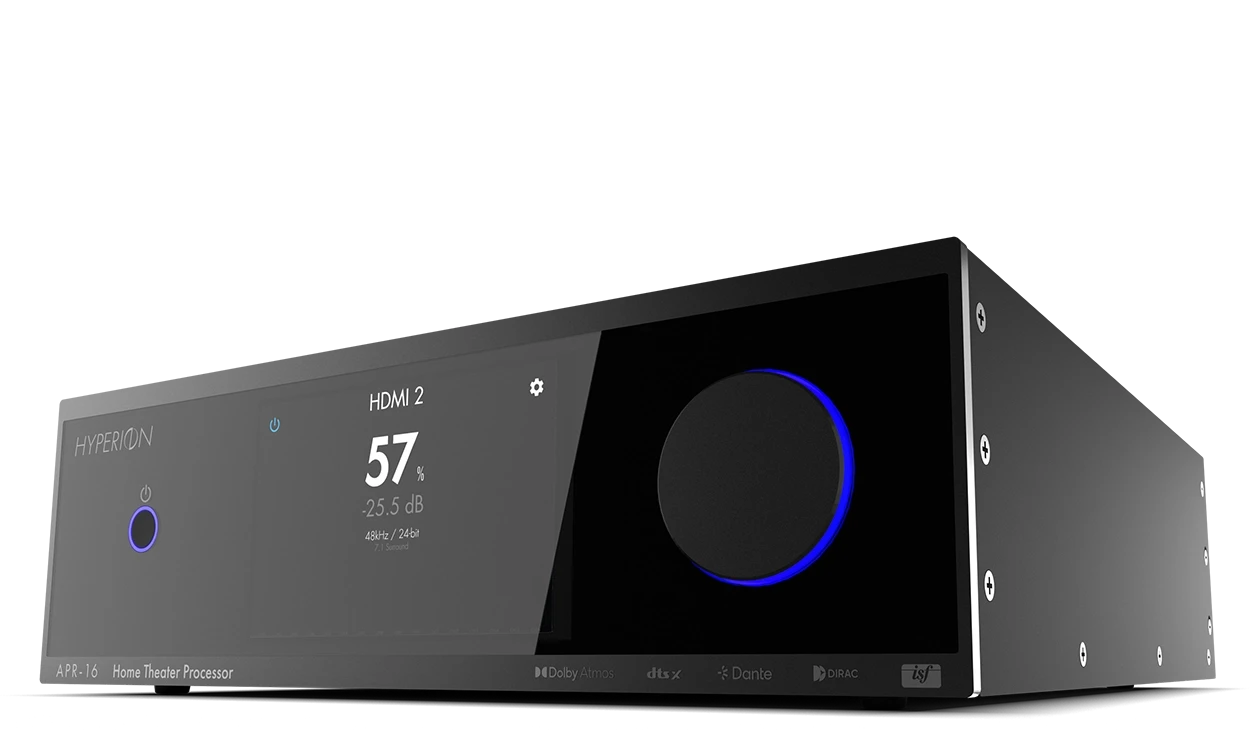

IMMERSIVE SOUND PRE-AMP PROCESSOR
IMMERSIVE SOUND PRE-AMP PROCESSOR
APR-16
A SUPERIOR CINEMATIC EXPERIENCE
A SUPERIOR CINEMATIC EXPERIENCE

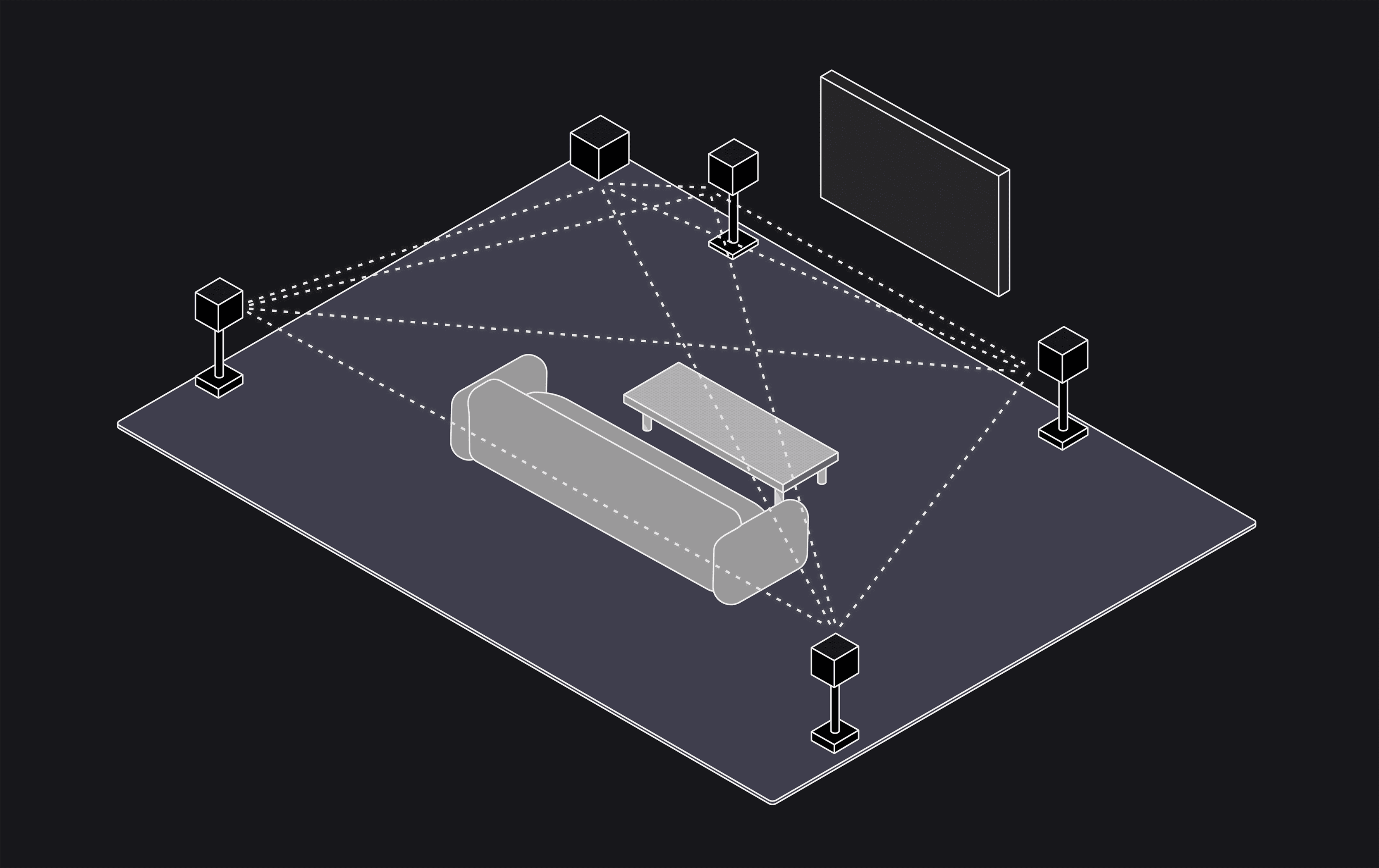

RP22 IMMERSIVE SOUND
RP22, the Immersive Audio Design Recommended Practice (CEDIA/CTA-RP22), is a set of guidelines that provide a framework for designing, installing, and calibrating home immersive audio systems. Hyperion products surpass all 21 technical benchmarks outlined by RP22, delivering precision-tuned acoustic optimization to any home cinema environment.
RP22 IMMERSIVE SOUND
RP22, the Immersive Audio Design Recommended Practice (CEDIA/CTA-RP22), is a set of guidelines that provide a framework for designing, installing, and calibrating home immersive audio systems. Hyperion products surpass all 21 technical benchmarks outlined by RP22, delivering precision-tuned acoustic optimization to any home cinema environment.
RP22 IMMERSIVE SOUND
RP22, the Immersive Audio Design Recommended Practice (CEDIA/CTA-RP22), is a set of guidelines that provide a framework for designing, installing, and calibrating home immersive audio systems. Hyperion products surpass all 21 technical benchmarks outlined by RP22, delivering precision-tuned acoustic optimization to any home cinema environment.

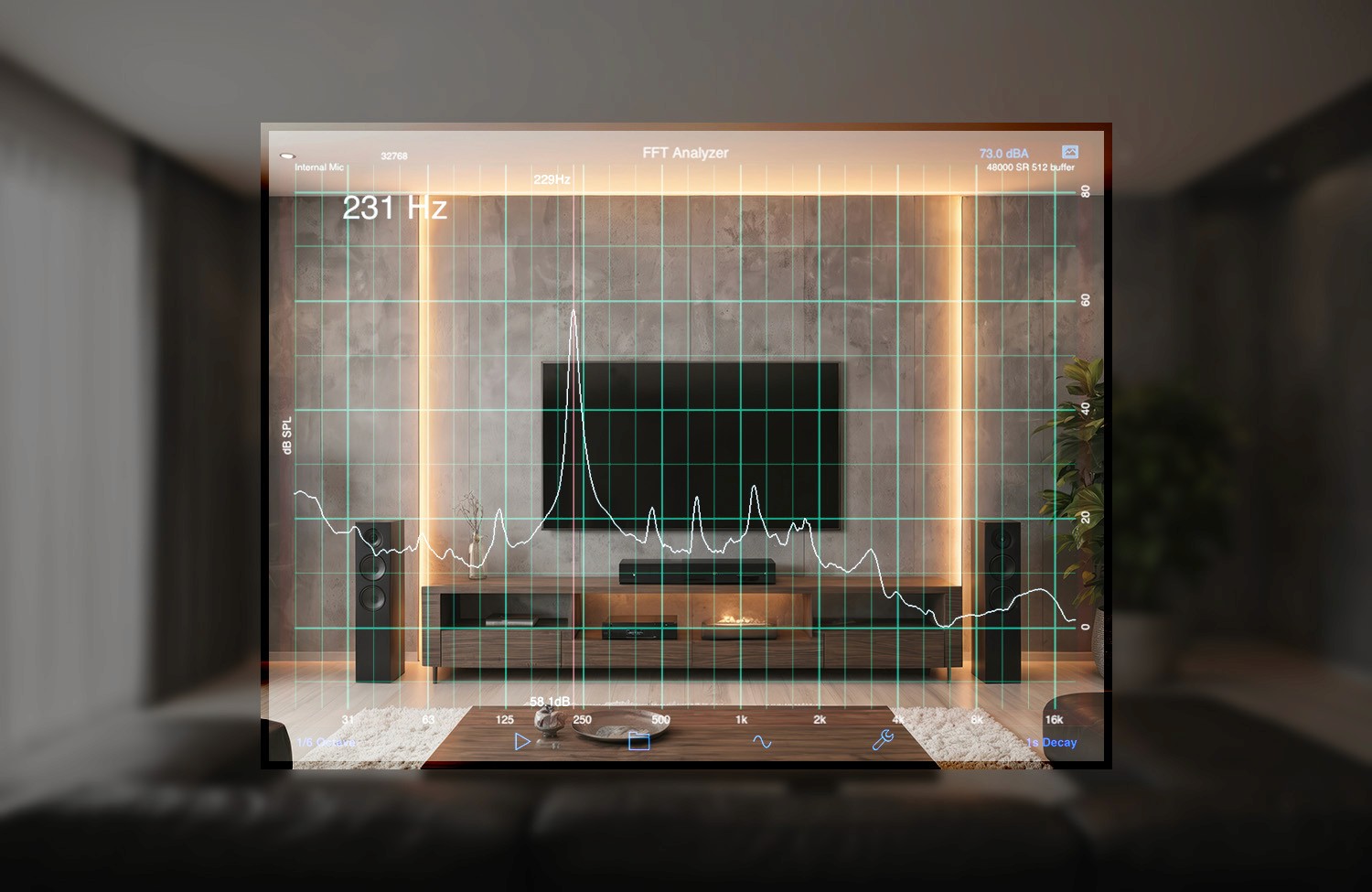

DIRAC ART ADVANCED ROOM CALIBRATION
The APR-16 fully leverages DIRAC-licensed technologies to minimize unwanted acoustic effects imposed by the listening environment that compromise loudspeaker performance. Dirac’s Room Correction, Bass Control, and Active Room Treatment algorithms seamlessly integrate with Hyperion’s advanced, high-performance ARM-based DSP architecture, working in real-time to balance loudspeaker response for spatially accurate, optimized playback across all audio sources.
DIRAC ART ADVANCED ROOM CALIBRATION
The APR-16 fully leverages DIRAC-licensed technologies to minimize unwanted acoustic effects imposed by the listening environment that compromise loudspeaker performance. Dirac’s Room Correction, Bass Control, and Active Room Treatment algorithms seamlessly integrate with Hyperion’s advanced, high-performance ARM-based DSP architecture, working in real-time to balance loudspeaker response for spatially accurate, optimized playback across all audio sources.
DIRAC ART ADVANCED ROOM CALIBRATION
The APR-16 fully leverages DIRAC-licensed technologies to minimize unwanted acoustic effects imposed by the listening environment that compromise loudspeaker performance. Dirac’s Room Correction, Bass Control, and Active Room Treatment algorithms seamlessly integrate with Hyperion’s advanced, high-performance ARM-based DSP architecture, working in real-time to balance loudspeaker response for spatially accurate, optimized playback across all audio sources.
SCIENTIFICALLY ACCURATE SOUND
Hyperion products have all been professionally tested and calibrated to meet science-based standards for room acoustics and audio performance to receive HAA Certification. With this certification, Hyperion delivers high-fidelity, precise, and immersive sound that aligns with the highest benchmarks in home audio.
SCIENTIFICALLY ACCURATE SOUND
Hyperion products have all been professionally tested and calibrated to meet science-based standards for room acoustics and audio performance to receive HAA Certification. With this certification, Hyperion delivers high-fidelity, precise, and immersive sound that aligns with the highest benchmarks in home audio.
SCIENTIFICALLY ACCURATE SOUND
Hyperion products have all been professionally tested and calibrated to meet science-based standards for room acoustics and audio performance to receive HAA Certification. With this certification, Hyperion delivers high-fidelity, precise, and immersive sound that aligns with the highest benchmarks in home audio.
ESS HIGH PERFORMANCE DAC
Hyperion engineers selected the Hyperstream IV ESS SABRE ES9039Q2M 32-bit, 2-channel audio D/A converters for their measured performance parameters, including an ultra-high dynamic range of +130dB and an extremely low total harmonic distortion plus noise (THD+N) of -120dB.
ESS HIGH PERFORMANCE DAC
Hyperion engineers selected the Hyperstream IV ESS SABRE ES9039Q2M 32-bit, 2-channel audio D/A converters for their measured performance parameters, including an ultra-high dynamic range of +130dB and an extremely low total harmonic distortion plus noise (THD+N) of -120dB.
ESS HIGH PERFORMANCE DAC
Hyperion engineers selected the Hyperstream IV ESS SABRE ES9039Q2M 32-bit, 2-channel audio D/A converters for their measured performance parameters, including an ultra-high dynamic range of +130dB and an extremely low total harmonic distortion plus noise (THD+N) of -120dB.
STUDIO-GRADE HDMI SIGNAL PATHS
Engineered for flexibility and advanced EDID and HDCP management, the APR-16 delivers pixel-accurate image fidelity from the source to any display device.
STUDIO-GRADE HDMI SIGNAL PATHS
Engineered for flexibility and advanced EDID and HDCP management, the APR-16 delivers pixel-accurate image fidelity from the source to any display device.
STUDIO-GRADE HDMI SIGNAL PATHS
Engineered for flexibility and advanced EDID and HDCP management, the APR-16 delivers pixel-accurate image fidelity from the source to any display device.
ISF CERTIFIED
Certified by the Imaging Science Foundation, Hyperion video signals are unmodified from their original form to deliver the highest quality video possible. Each HDMI section was independently purpose-developed and individually optimized, featuring distinct and wholly independent signal path topologies.
ISF CERTIFIED
Certified by the Imaging Science Foundation, Hyperion video signals are unmodified from their original form to deliver the highest quality video possible. Each HDMI section was independently purpose-developed and individually optimized, featuring distinct and wholly independent signal path topologies.
ISF CERTIFIED
Certified by the Imaging Science Foundation, Hyperion video signals are unmodified from their original form to deliver the highest quality video possible. Each HDMI section was independently purpose-developed and individually optimized, featuring distinct and wholly independent signal path topologies.
FULL CONTROL FROM ANY DEVICE
Control every aspect of your Hyperion system with an intuitive interface via the web GUI on your PC, phone, or tablet.
FULL CONTROL FROM ANY DEVICE
Control every aspect of your Hyperion system with an intuitive interface via the web GUI on your PC, phone, or tablet.
FULL CONTROL FROM ANY DEVICE
Control every aspect of your Hyperion system with an intuitive interface via the web GUI on your PC, phone, or tablet.

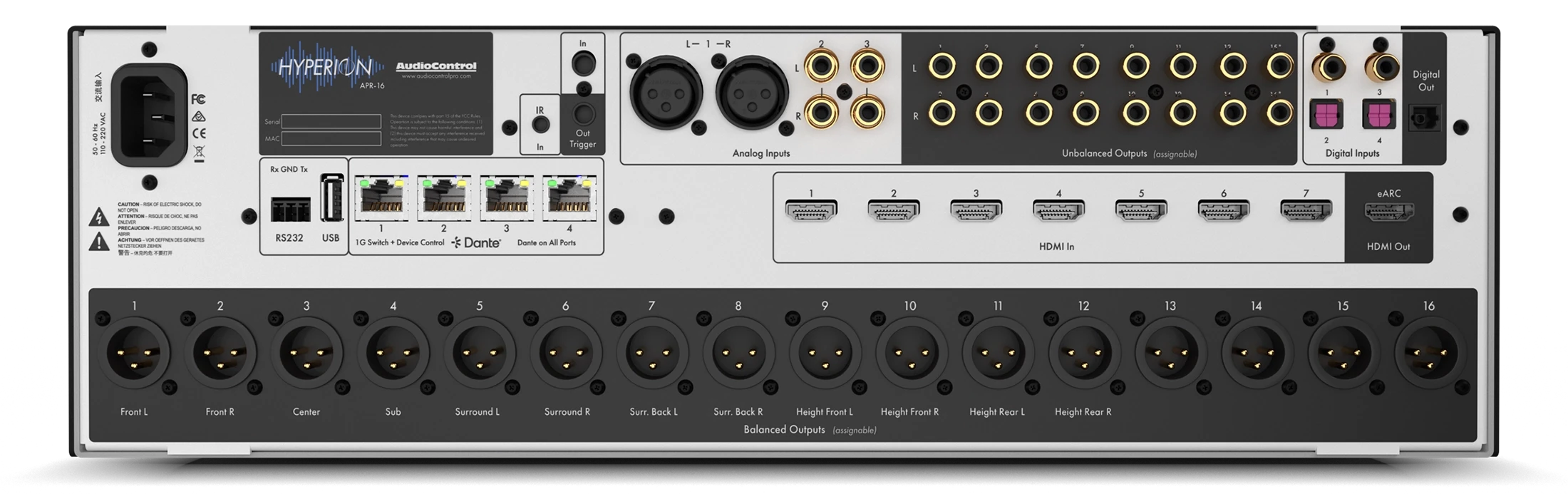

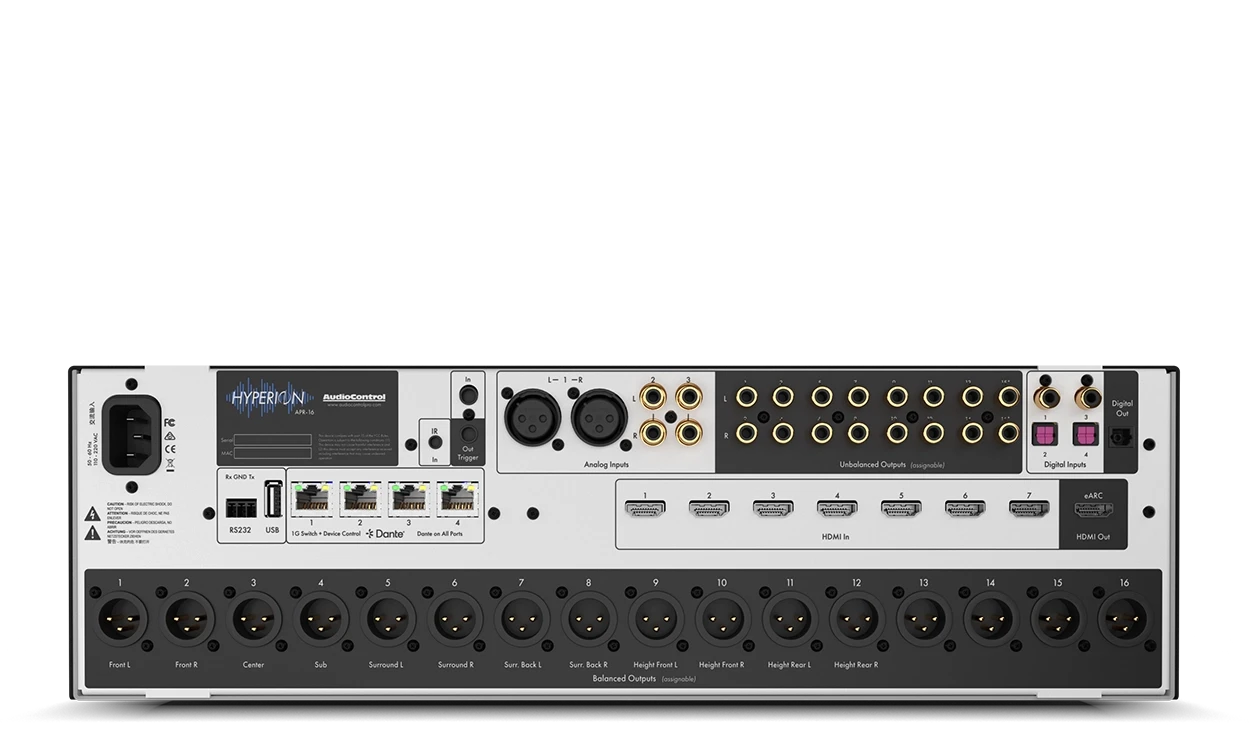

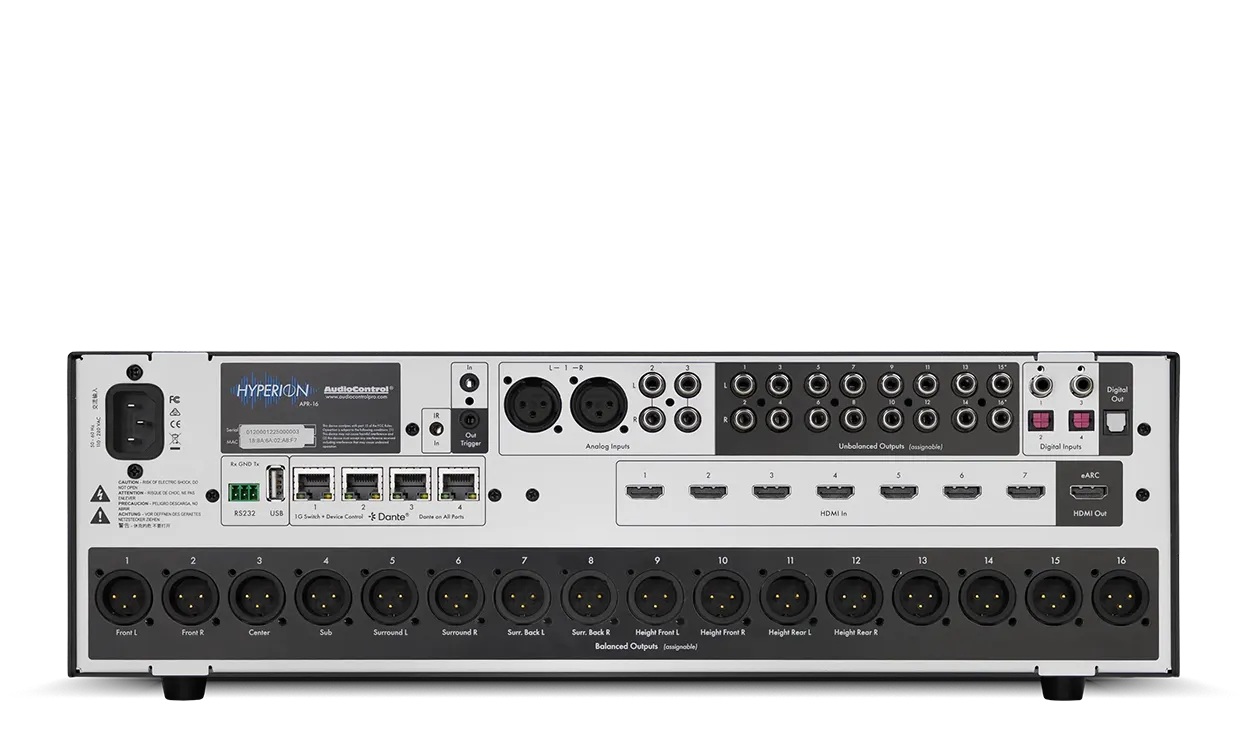

Inputs | 7 x HDMI inputs |
2 x stereo Analog unbalanced RCA | |
1 x stereo Analog balanced XLR | |
2 x Optical IN | |
2 x Digital coax IN | |
Dante/AES67 | |
Outputs | 16 x Analog unbalanced RCA OUT (assignable) |
16 x Analog balanced XLR outputs (assignable) | |
1 x HDMI Out (eARC) | |
1 x Optical Out | |
Dante/AES67 | |
Processing | Up to 16 decoding/upmixing Channels |
Sampling Rate supported - 24 bit/192k | |
HDMI - 2.1 | |
HDCP 2.3 | |
HDR support, Dolby Vision | |
Max Resolution - 4K 120 hz/8k 60 Hz | |
Max Bandwidth - 48 gbps | |
Dolby Atmos | |
DTS:X | |
Dirac | |
HDMI Connectivity | HDMI 2.1/HDCP 2.3 |
48 gbps on all ports | |
HDR10+, Dolby Vision, HLG, VRR | |
ARC/eARC - available on main output | |
Control Inputs/Outputs | 1 x RS-232 Serial Control |
4 x RJ45s - TCP/IP Ethernet | |
IR jack In | |
5-12v trigger In/Out | |
TCP/IP Ethernet | |
IR Remote Included | |
7 inch Front Panel LCD touchscreen | |
Cloud based FW updates via Web interface | |
USB-A for FW updates/maintenance | |
Dimensions (no rack ears or feet) | L-17.75 (45.085 cm) x W-17.25 (43.815 cm) x H-5.25 (13.335 cm) 3U |
Dimensions (with feet) | L-17.75 (45.085 cm) x W-17.25 (43.815 cm) x H-6.0 (15.24 cm) 3U |
Weight | 18.70 lbs (8.48 kg) |
Power | 100-240v (universal power supply) |
Power Consumption Under Max Load <50 watts | |
Audio | DAC - Sabre ES9039QTM |
Frequency response | 20 Hz to 20kHz (+/- 0.05dB) |
Frequency Response Analog Direct Input RCA/XLR | 20 Hz to 20kHz (+/- 0.05dB) |
THD+N | <.0002% |
Signal to Noise Ratio | 20 Hz to 20 kHz A-Weighted |
< -122 dBr (ref 4.2Vrms) | |
< -129 dBr (ref 10vrms) | |
Maximum Output Swing XLR Output | 10vrms +22dBu @ 0dBFS (Balanced) |
Maximum Output Swing RCA Output | 4vrms +14.2dbu @ 0dBFS (Unbalanced) |
Maximum input Level (RCA Inputs) | 2.1 Vrms |
Input impendence (Single Ended RCA Inputs) | > 10 kW |
Maximum input Level (XLR Inputs) | 4.2 Vrms |
Input impendence (Balanced XLR Inputs) | > 2.4 kW differentially |
This product operates from a single phase AC power source that supplies between 108V and 264V at a frequency of 50 or 60 Hz. | |
Inputs |
7 x HDMI inputs |
2 x stereo Analog unbalanced RCA |
1 x stereo Analog balanced XLR |
2 x Optical IN |
2 x Digital coax IN |
Dante/AES67 |
Outputs |
16 x Analog unbalanced RCA OUT (assignable) |
16 x Analog balanced XLR outputs (assignable) |
1 x HDMI Out (eARC) |
1 x Optical Out |
Dante/AES67 |
Processing |
Up to 16 decoding/upmixing Channels |
Sampling Rate supported - 24 bit/192k |
HDMI - 2.1 |
HDCP 2.3 |
HDR support, Dolby Vision |
Max Resolution - 4K 120 hz/8k 60 Hz |
Max Bandwidth - 48 gbps |
Dolby Atmos |
DTS:X |
Dirac |
HDMI Connectivity |
HDMI 2.1/HDCP 2.3 |
48 gbps on all ports |
HDR10+, Dolby Vision, HLG, VRR |
ARC/eARC - available on main output |
Control Inputs/Outputs |
1 x RS-232 Serial Control |
4 x RJ45s - TCP/IP Ethernet |
IR jack In |
5-12v trigger In/Out |
TCP/IP Ethernet |
IR Remote Included |
7 inch Front Panel LCD touchscreen |
Cloud based FW updates via Web interface |
USB-A for FW updates/maintenance |
Dimensions (no rack ears or feet) |
L-17.75 (45.085 cm) x W-17.25 (43.815 cm) x H-5.25 (13.335 cm) 3U |
Dimensions (with feet) |
L-17.75 (45.085 cm) x W-17.25 (43.815 cm) x H-6.0 (15.24 cm) 3U |
Weight |
18.70 lbs (8.48 kg) |
Power |
100-240v (universal power supply) |
Power Consumption Under Max Load <50 watts |
Audio |
DAC - Sabre ES9039QTM |
Frequency response |
Frequency Response Analog Direct Input RCA/XLR |
THD+N |
Signal to Noise Ratio |
Maximum Output Swing XLR Output |
Maximum Output Swing RCA Output |
Maximum input Level (RCA Inputs) |
Input impendence (Single Ended RCA Inputs) |
Maximum input Level (XLR Inputs) |
Input impendence (Balanced XLR Inputs) |
This product operates from a single phase AC power source that supplies between 108V and 264V at a frequency of 50 or 60 Hz. |
