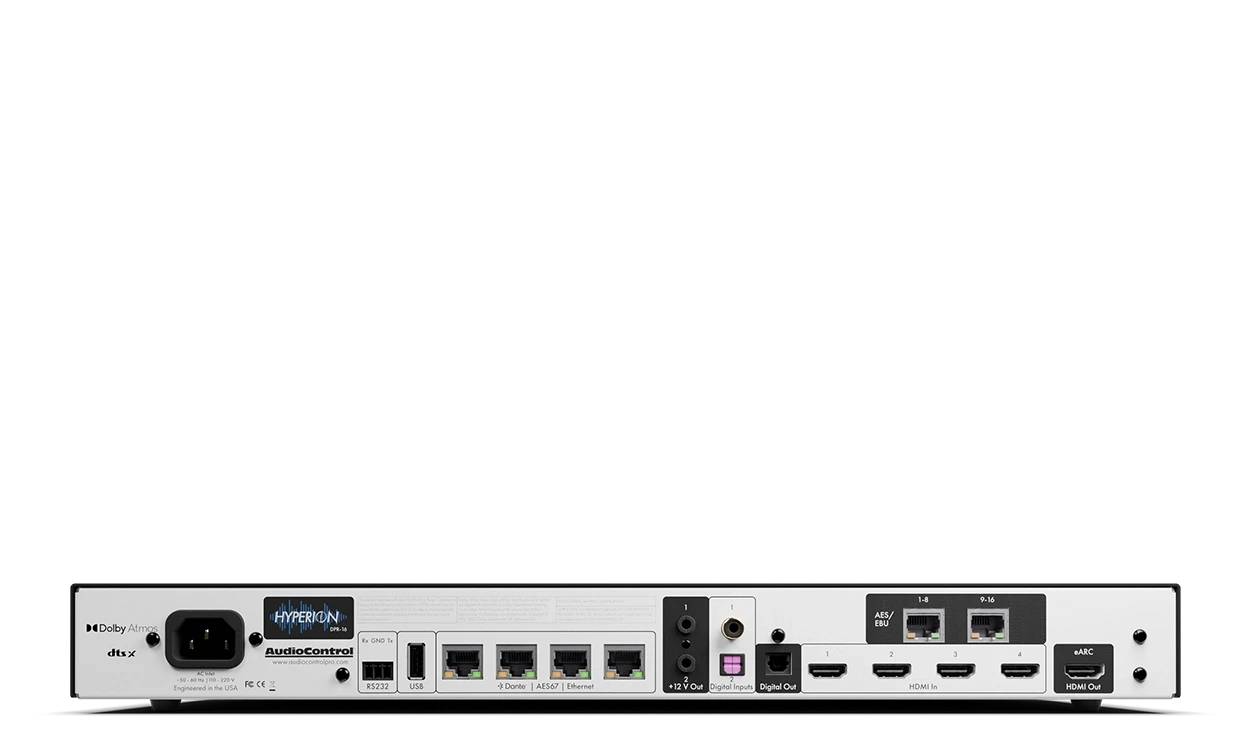

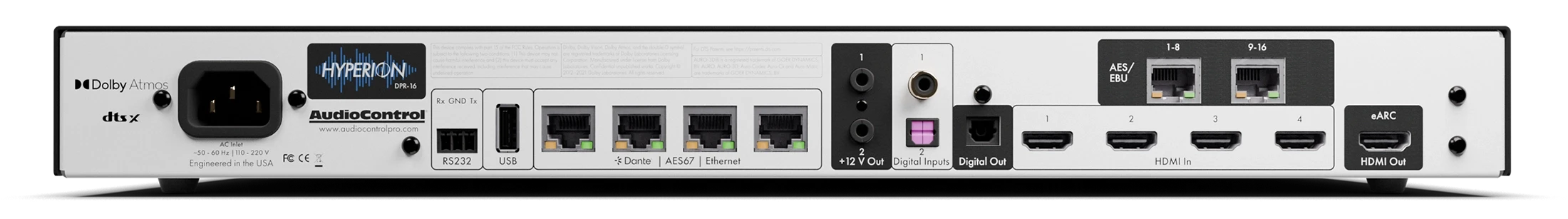

Inputs | • 4 x HDMI inputs |
| • 1 x Optical IN |
| • 1 x Digital coax IN |
|
|
Outputs | • 1 x HDMI Out (eARC) |
| • 1 x Optical Out |
| • 2 x RJ45 - 16 channels AES-EBU |
| • 2 x RJ45 - 16 AEX67/Dante |
|
|
Digital Analog Conversion | • +130db Dynamic Range (DNR) |
(Sabre Es9039QTM) | • -126db Total Harmonic Distortion (THD) |
| • -120db total harmonic Distortrion + Noise (THD+N) |
|
|
Processing | • Up to 16 decoding /upmixing Channels |
| • Sampling Rate supported - 24 bit/192k |
| • HDMI - 2.1 |
| • HDCP 2.3 |
| • HDR support |
| • Max Resolution - 4K 120 hz/8K 60 Hz |
| • Max Bandwidth - 48 Gbps |
| • Dolby Atmos |
| • DTS:X |
|
|
HDMI Connectivity | • HDMI 2.1/HDCP 2.3 |
| • 48 Gbps on all ports |
| • HDR10+, Dolby Vision, HLG, VRR |
| • ARC/eARC - available on main output |
|
|
Control Inputs/Outputs | • 1 x RS-232 Serial Control |
| • 2 x RJ45s - TCP/IP Ethernet |
| • 5-12v trigger In/Out |
| • RS-232 |
| • Cloud based FW updates via Web interface |
| • USB-A for FW updates/maintenance |
|
|
Power | • 100-240v (universal power supply) |
