Power Output | • 100w @ 8 and 4 ohms - all channels driven at 1/8 th power. |
|
|

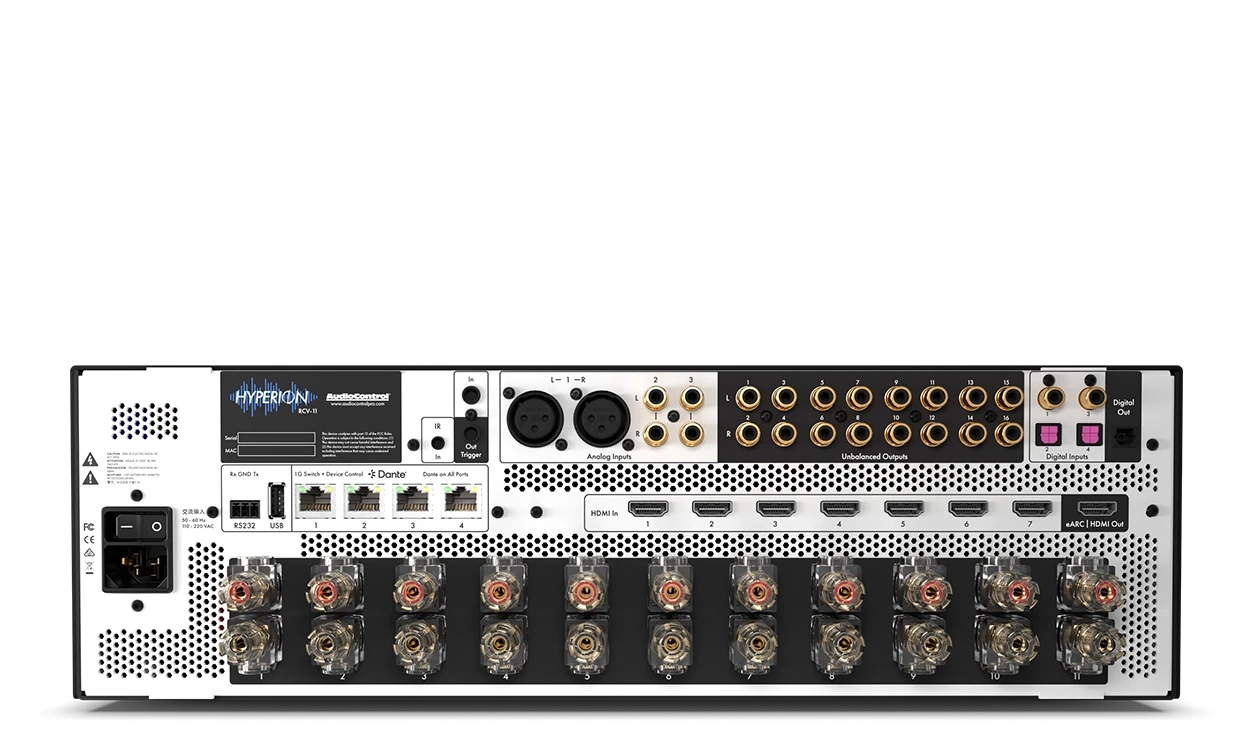

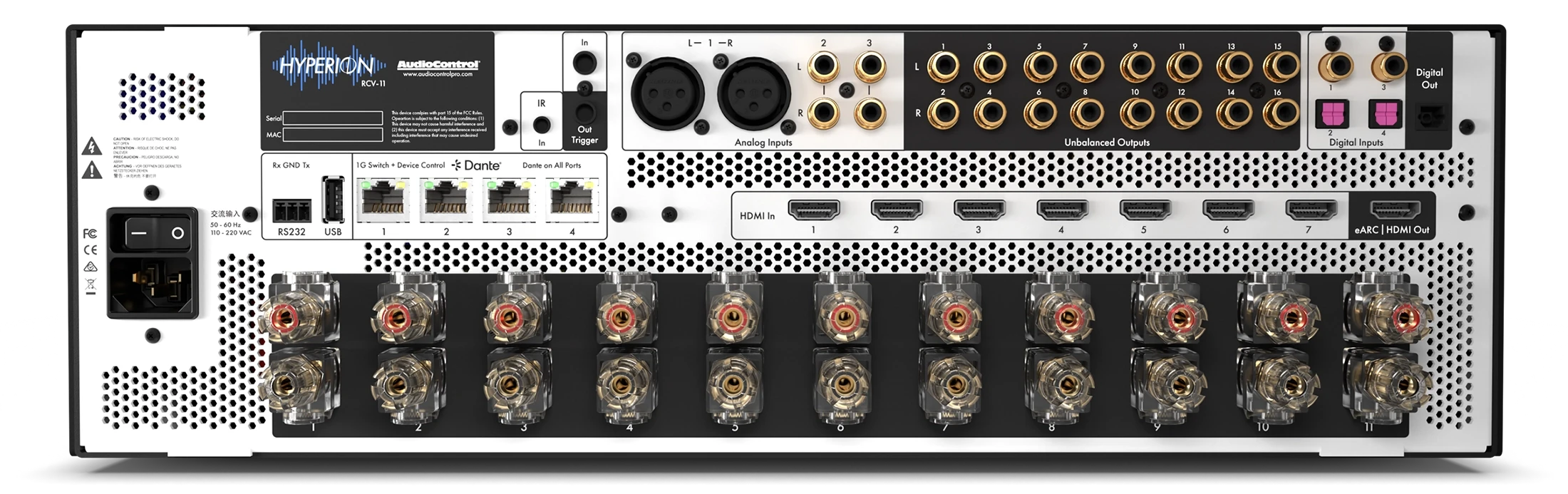

Inputs | • 7 x HDMI inputs |
| • 2 x stereo Analog unbalanced RCA |
| • 1 x stereo Analog balanced XLR |
| • 2 x Optical IN |
| • 2 x Digital coax IN |
|
|
Outputs | • 16 x Analog unbalanced RCA OUT (assignable) |
| • 16 x Speaker terminals - 5 way Binding posts |
| • 1 x HDMI Out (eARC) |
| • 1 x Optical Out |
|
|
Digital Analog Conversion | • +130db Dynamic Range (DNR) |
Sabre Es9039QTM | • -126db Total Harmonic Distortion (THD) |
| • -120db total harmonic Distortrion + Noise (THD+N) |
|
|
Processing | • Up to 16 decoding/upmixing Channels |
| • Sampling Rate supported - 24 bit/192k |
| • HDMI - 2.1 |
| • HDCP 2.3 |
| • HDR support |
| • Max Resolution - 4K 120 hz/8k 60 Hz |
| • Max Bandwidth - 48 gbps |
| • Dolby Atmos |
| • DTS:X |
|
|
HDMI Connectivity | • HDMI 2.1/HDCP 2.3 |
| • 48 gbps on all ports |
| • HDR10+, Dolby Vision, HLG, VRR |
| • ARC/eARC - available on main output |
|
|
Control Inputs/Outputs | • 1 x RS-232 Serial Control |
| • 4 x RJ45s - TCP/IP Ethernet |
| • IR jack In |
| • 5-12v trigger In/Out |
| • TCP/IP Ethernet |
| • IR Remote Included |

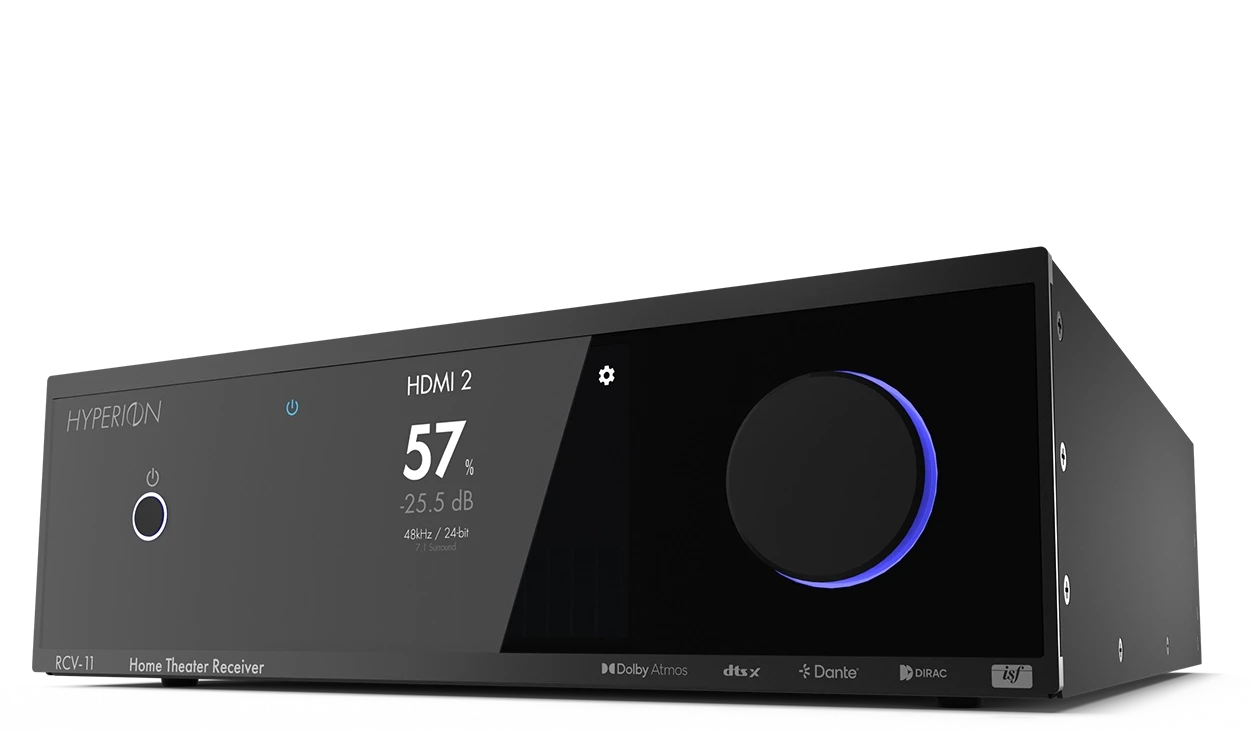

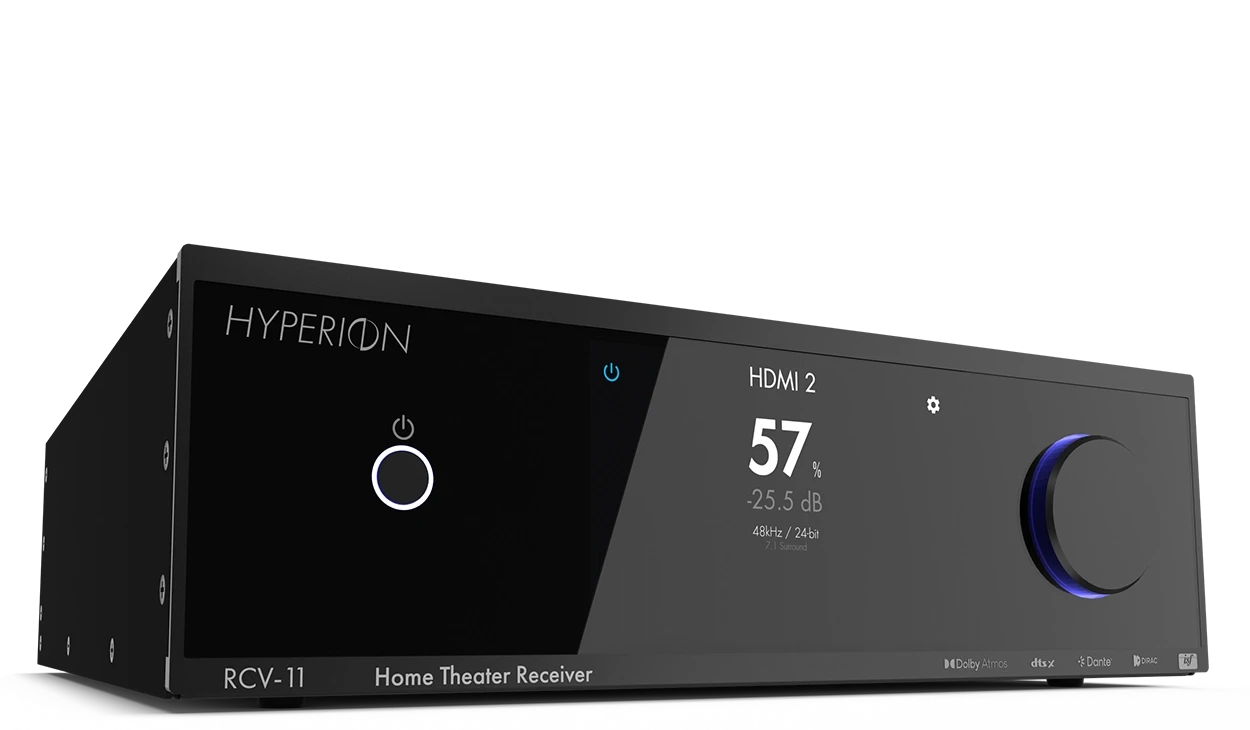

| • 7 inch Front Panel LCD touchscreen |
| • Cloud based FW updates via Web interface |
| • USB-A for FW updates/maintenance |
